Overview
As a leading nickel alloy bars supplier in India, RAHUL FERROMETAL manufactures and produces nickel alloy hexagon bars of various sizes. Nickel alloy hexagon bar(hex bar, hexagonal bar) is a nickel alloy bar with a hexagon cross-section. It has good corrosion resistance and high temperature resistance, as well as good workability. Since it can be used as the raw material for many nickel alloy fasteners (such as nickel alloy screws, nickel alloy nuts, etc.), it is also one of our most popular nickel alloy bar products. We can provide hot-rolled, cold-drawn or forged nickel alloy hexagon bars. The common finish of nickel alloy hexagon bar is polished finish. If you need nickel alloy hexagon bar with other finishes such as pickling or sandblasting, please confirm with us.
RAHUL FERROMETAL supplies different nickel alloy grades: Monel(400, 401, K-500, etc), Inconel(600, 601, 625, 718, etc), Incoloy(800, 825, A-286, etc) and Hastelloy(B-2, C-22, C-276, etc). The diameter between two adjacent side width of our nickel alloy hexagon bar ranges from 3mm to 180mm. Customized size is also available.
Our products have higher quality and lower price. Our sales are more professional and responsible. Please don't hesitate to contact us!
Specifications
- • Dimension: 3mm - 180mm
- • Delivery State: Cold Drawn, Hot Rolled, Grinding, Forged, Centerless Grinding
- • Finish: Polished, Bright, Hairline, Grinded, Sandblast, Pickled, Mill Finish
Standards
- ASTM A484, ASTM A484M
- ASTM A638, ASTM A638M
- ASTM B160, ASTM B164, ASTM B166
- ASTM B408, ASTM B425, ASTM B446, ASTM B472, ASTM B473
- ASTM B511, ASTM B512
- ASTM B649, ASTM B691
- ASTM B805
Features
- Outstanding high temperature resistance and corrosion resistance, bright surface, excellent straightness.
Applications
- Food equipment, chemical equipment, nuclear energy industry equipment, construction engineering, equipment and parts that require good overall performance (corrosion resistance and formability).
Grades Available
MONEL
400
Si
C
Mn
Fe
Cu
Ni
K-500
Si
C
Mn
Fe
Al
Ti
Cu
Ni
INCONEL
600
Si
C
Mn
Cu
Fe
Cr
Ni
601
Si
C
Mn
Al
Cu
Fe
Cr
Ni
625
Si
C
Al
Ti
Co
Ta
Mo
Fe
Cr
Ni
718
Si
C
Al
Ti
Co
Nb
Ta
Mo
Fe
Cr
Ni
INCOLOY
825
Si
Mn
Al
Ti
Cu
Mo
Fe
Cr
Ni
A-286
Si
C
Mn
Al
Ti
V
Mo
Fe
Cr
Ni
HASTELLOY
B-3
Mn
Al
Ti
Co
V
W
Fe
Mo
Cr
Ni
C-276
Mn
Co
V
W
Fe
Mo
Cr
Ni
MONEL
R-405
Si
C
Mn
Fe
Cu
Ni
502
Si
C
Mn
Al
Ti
Fe
Cu
Ni
INCONEL
602CA
Si
C
Al
Y
Fe
Cr
Ni
617
Si
C
Mn
Al
Ti
Cu
Co
Mo
Fe
Cr
Ni
686
Mn
W
Mo
Fe
Cr
Ni
690
Si
Cu
Fe
Cr
Ni
693
Si
C
Mn
Al
Ti
Cu
Nb
Fe
Cr
Ni
706
Si
Al
Ti
Co
Nb
Fe
Cr
Ni
725
Si
Al
Ti
Nb
Mo
Fe
Cr
Ni
X-750
Si
C
Mn
Al
Ti
Cu
Co
Fe
Cr
Ni
783
Si
Al
Ti
Cu
Co
Nb
Fe
Cr
Ni
INCOLOY
800
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
800H
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
800HT
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
890
Si
C
Mn
Ti
Cu
Nb
Mo
Fe
Cr
Ni
903
Al
Ti
Co
Nb
Fe
Ni
909
Si
Mn
Al
Ti
Cu
Co
Nb
Fe
Cr
Ni
926
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
020
Si
C
Mn
Cu
Mo
Fe
Cr
Ni
028
Si
Mn
Cu
Mo
Fe
Cr
Ni
DS
Si
C
Mn
Cu
Co
Fe
Cr
Ni
330
Si
C
Mn
Cu
Fe
Cr
Ni
25-6HN
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
27-7MO
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
HASTELLOY
B
Si
Mn
Co
V
Fe
Mo
Cr
Ni
B-2
Mn
Co
Fe
Mo
Cr
Ni
C
Si
Mn
Co
V
W
Fe
Mo
Cr
Ni
C-4
Mn
Ti
Co
Fe
Mo
Cr
Ni
C-22
Co
V
W
Fe
Mo
Cr
Ni
C-22HS
Al
Cu
Co
W
Fe
Mo
Cr
Ni
C-2000
Al
Cu
Co
Fe
Mo
Cr
Ni
G-3
Si
Mn
Cu
Co
W
Fe
Mo
Cr
Ni
G-30
Si
Mn
Cu
Co
W
Fe
Mo
Cr
Ni
G-35
Si
Al
Co
V
W
Fe
Mo
Cr
Ni
N
Si
C
Mn
V
W
Fe
Mo
Cr
Ni
S
Si
Al
Co
W
Fe
Mo
Cr
Ni
W
Si
C
Mn
Co
V
W
Fe
Mo
Cr
Ni
X
Si
C
Mn
Al
Co
Nb
W
Fe
Mo
Cr
Ni
Manufacturing Process of Nickel Alloy Hexagon Bar
Steel Making
Ingot Casting
Ingot
Heating
Continuous Hot Rolling
Square Billet
Heating
Hot Rolling
Hexagon Bar
Cooling
Cold Drawing
Straightening
Polishing
Inspection
Analytic
Marking
Packing & Shipping
Drawing & Formula
Formula: m = D (mm) × D (mm) × L (m) × ρ (g/cm³) × 0.866 ÷ 1000
D = Diameter
between two adjacent side width, L = Length, ρ = Density
Technical Sheet
| Cold Drawn | |||
|---|---|---|---|
| Specified Dimension, in. (mm) | Permissible Variations from Specified Size, in. (mm) | ||
| Over | Under | ||
| Over 1/2(12.70) to 1(25.40), incl | 0 | 0.004(0.10) | |
| Over 1(25.40) to 2(50.80), incl | 0 | 0.006(0.15) | |
| Over 2(50.80) to 3(76.20), incl | 0 | 0.008(0.20) | |
| Over 3(76.20) | 0 | 0.010(0.25) | |
| Hot Rolled | |||
| Specified Sizes Measured Between Opposite Sides, in. (mm) | Permissible Variations from Specified Size, in. (mm) | Maximum Difference in 3 Measurements for Hexagons, in. (mm) | |
| Over | Under | ||
| 1/4(6.35) to 1/2(12.70), incl | 0.007(0.18) | 0.007(0.18) | 0.011(0.28) |
| Over 1/2(12.70) to 1(25.40), incl | 0.010(0.25) | 0.010(0.25) | 0.015(0.38) |
| Over 1(25.40) to 1 1/2(38.10), incl | 0.021(0.53) | 0.021(0.53) | 0.025(0.64) |
| Over 1 1/2(38.10) to 2(50.80), incl | 1/32(0.79) | 1/32(0.79) | 1/32(0.79) |
| Over 2(50.80) to 2 1/2(63.50), incl | 3/64(1.19) | 3/64(1.19) | 3/64(1.19) |
| Over 2 1/2(63.50) to 3 1/2(88.90), incl | 1/16(1.59) | 1/16(1.59) | 1/16(1.59) |
| Delivery State Choice | Surface Condition |
|---|---|
| Hot Rolled | Pickled |
| Sand Blasted | |
| Cold Drawn | Polished |
| Bright | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. |
|

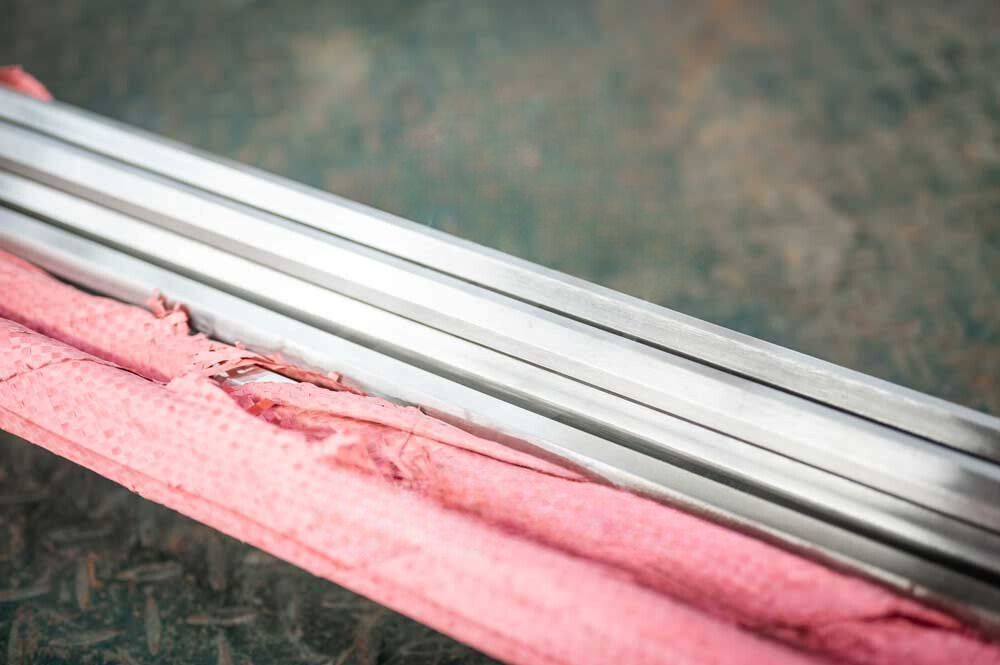

Package
Plastic Bag
Wooden Case
At RAHUL FERROMETAL, our nickel alloy hexagon bar are packed tightly as per international standard to prevent any possible damage. By default we will use thick woven plastic bags to bundle several pieces together (always one bundle ≤1500KGs). However, for those tube pipes that are susceptible to dirt pollution, scraping, stress or man-handling damages, we suggest wooden case for protection. Please be kindly noted that wooden case can incur extra cost by its own, and at times can increase the freight, which is especially remarkable for air transportation. For enhanced user experience, we will pack as per your diverged requirements.
Logistics
By Sea
By Air
Sea transportation is the most popular for most orders, hence regarded as the default transportation mode. Accordingly, quotation is thus made as per FOB, CFR, CIF etc.. For urgent demand, we can also offer as per air transportation.
FAQ
Yes, we can produce round-edge nickel alloy hexagon bars according to your requirements.A
Our minimum order quantity is 500kg. Larger quantity, lower price.A
It is usually 45 days, but it is also affected by your specific requirements or order quantity.A
For small parts, we can provide free samples of regular sizes, but the shipping costs must be borne by you. For large samples, we will include it in the order amount. Please confirm with our sales department according to your specific requirements.A
Of course. Welcome to our factory for on-site inspection.A
From the selection of raw materials to packaging for transportation, each production process will be tested and evaluated. Only products that have passed all tests can be delivered for export.A
