Overview
As a leading nickel alloy pipes & tubes supplier in India, RAHUL FERROMETAL produces and manufactures nickel alloy reducer to match the pipes & tubes. Nickel alloy reducer is also called nickel alloy size head. It is one of the important pipe fittings for the connection between two different pipe diameters. It is always used with nickel alloy seamless pipe & tube or nickel alloy welded pipe & tube. It has outstanding corrosion resistance and high temperature resistance. According to different shapes, there are two types: concentric reducer and eccentric reducer. RAHUL FERROMETAL provides nickel alloy reducers of various shapes and sizes. According to your needs, we can perform sand blasting, sand rolling or polishing treatment on the finish of nickel alloy reducers.
RAHUL FERROMETAL supplies different nickel alloy grades: Monel(400, 401, K-500, etc), Inconel(600, 601, 625, 718, etc), Incoloy(800, 825, A-286, etc) and Hastelloy(B-2, C-22, C-276, etc). The outer diameter of our nickel alloy reducer ranges from 21.3mm to 457mm. Customized size is also available.
Our products have higher quality and lower price. Our sales are more professional and responsible. Please don't hesitate to contact us!
Specifications
- • NPS: ½ ~ 48"
- • SCH: 5 ~ XXS
- • Classification: Concentric Reducer, Eccentric Reducer
- • Connection Methods: clamped, welded & threaded
Standards
- ASTM B366, ASTM B366M, ASTM B462
- ASME B16.9, ASME B16.11
- MSS SP-25, MSS SP-43
Features
- Corrosion resistance, high temperature resistance, white surface.
Applications
- 1. Ocean: Marine structures in the marine environment, seawater desalination, mariculture, seawater heat exchange, etc.
- 2. Environmental protection field: flue gas desulfurization device for thermal power generation, wastewater treatment, etc.
- 3. Energy field: nuclear power generation, comprehensive utilization of coal, sea tide power generation, etc.
- 4. Petrochemical industry: oil refining, chemical and chemical equipment, etc.
Grades Available
MONEL
400
Si
C
Mn
Fe
Cu
Ni
K-500
Si
C
Mn
Fe
Al
Ti
Cu
Ni
INCONEL
600
Si
C
Mn
Cu
Fe
Cr
Ni
601
Si
C
Mn
Al
Cu
Fe
Cr
Ni
625
Si
C
Al
Ti
Co
Ta
Mo
Fe
Cr
Ni
718
Si
C
Al
Ti
Co
Nb
Ta
Mo
Fe
Cr
Ni
INCOLOY
800
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
800H
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
825
Si
Mn
Al
Ti
Cu
Mo
Fe
Cr
Ni
A-286
Si
C
Mn
Al
Ti
V
Mo
Fe
Cr
Ni
HASTELLOY
B-3
Mn
Al
Ti
Co
V
W
Fe
Mo
Cr
Ni
C-276
Mn
Co
V
W
Fe
Mo
Cr
Ni
INCONEL
602CA
Si
C
Al
Y
Fe
Cr
Ni
617
Si
C
Mn
Al
Ti
Cu
Co
Mo
Fe
Cr
Ni
686
Mn
W
Mo
Fe
Cr
Ni
690
Si
Cu
Fe
Cr
Ni
693
Si
C
Mn
Al
Ti
Cu
Nb
Fe
Cr
Ni
X-750
Si
C
Mn
Al
Ti
Cu
Co
Fe
Cr
Ni
INCOLOY
800HT
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
890
Si
C
Mn
Ti
Cu
Nb
Mo
Fe
Cr
Ni
925
Si
Mn
Al
Ti
Cu
Nb
Mo
Fe
Cr
Ni
926
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
020
Si
C
Mn
Cu
Mo
Fe
Cr
Ni
028
Si
Mn
Cu
Mo
Fe
Cr
Ni
DS
Si
C
Mn
Cu
Co
Fe
Cr
Ni
330
Si
C
Mn
Cu
Fe
Cr
Ni
25-6HN
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
27-7MO
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
HASTELLOY
B
Si
Mn
Co
V
Fe
Mo
Cr
Ni
B-2
Mn
Co
Fe
Mo
Cr
Ni
C
Si
Mn
Co
V
W
Fe
Mo
Cr
Ni
C-4
Mn
Ti
Co
Fe
Mo
Cr
Ni
C-22
Co
V
W
Fe
Mo
Cr
Ni
C-2000
Al
Cu
Co
Fe
Mo
Cr
Ni
G-3
Si
Mn
Cu
Co
W
Fe
Mo
Cr
Ni
G-30
Si
Mn
Cu
Co
W
Fe
Mo
Cr
Ni
G-35
Si
Al
Co
V
W
Fe
Mo
Cr
Ni
N
Si
C
Mn
V
W
Fe
Mo
Cr
Ni
X
Si
C
Mn
Al
Co
Nb
W
Fe
Mo
Cr
Ni
Manufacturing Process of Nickel Alloy Reducer
Pipe

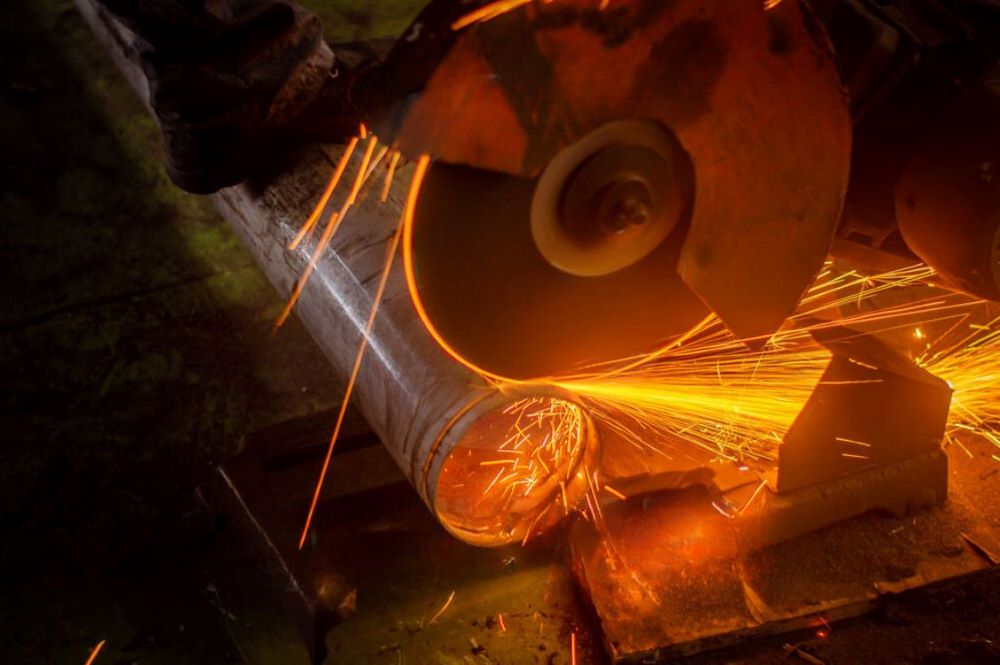

Cutting
Forming
Sizing
Heat Treatment
Pickling

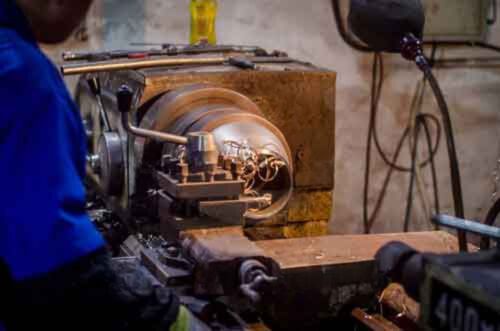

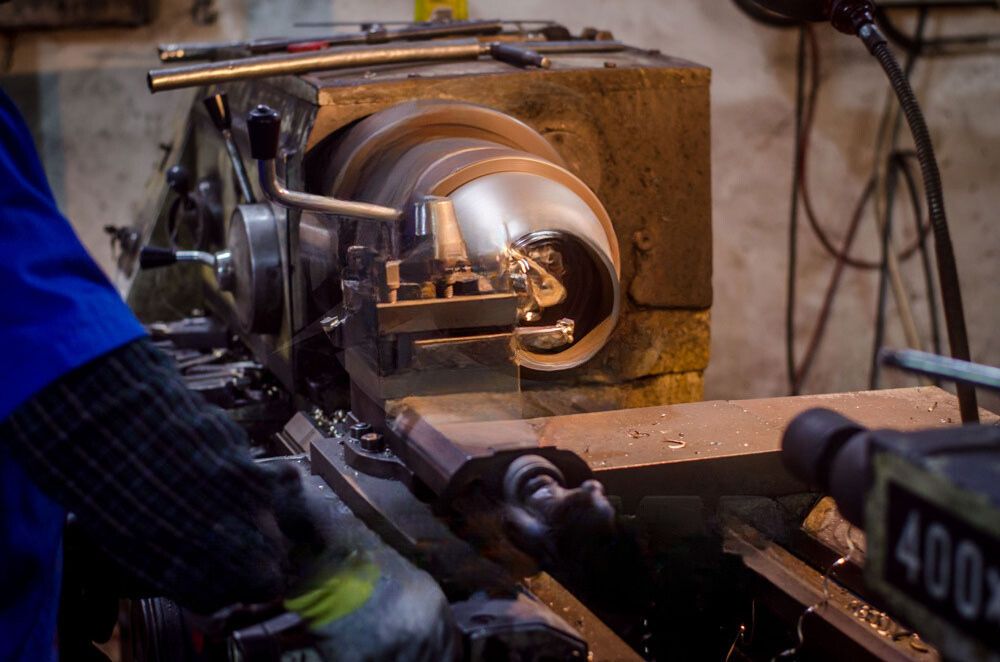

Beveling
Polishing
Sand Blasting
Reducer
Inspection
Analytic
Marking
Packing & Shipping
Drawing
Technical Sheet
| Nominal Pipe Size (NPS) |
Outside Diameter at Bevel, mm (in.) | End-to-End, H, mm (in.) |
Nominal Pipe Size (NPS) |
Outside Diameter at Bevel, mm (in.) | End-to-End, H, mm (in.) |
||
|---|---|---|---|---|---|---|---|
| Large End | Small End | Large End | Small End | ||||
| 3/4×1/2 | 26.7(1.05) | 21.3(0.84) | 38(1.50) | 20×18 | 508(20.00) | 457.0(18.00) | 508(20.00) |
| 3/4×3/8 | 26.7(1.05) | 17.3(0.68) | 38(1.50) | 20×16 | 508(20.00) | 406.4(16.00) | 508(20.00) |
| 1×3/4 | 33.4(1.32) | 26.7(1.05) | 51(2.00) | 20×14 | 508(20.00) | 355.6(14.00) | 508(20.00) |
| 1×1/2 | 33.4(1.32) | 21.3(0.84) | 51(2.00) | 20×12 | 508(20.00) | 323.8(12.75) | 508(20.00) |
| 5/4×1 | 42.2(1.66) | 33.4(1.32) | 51(2.00) | 22×20 | 559(22.00) | 508.0(20.00) | 508(20.00) |
| 5/4×3/4 | 42.2(1.66) | 26.7(1.05) | 51(2.00) | 22×18 | 559(22.00) | 457.0(18.00) | 508(20.00) |
| 5/4×1/2 | 42.2(1.66) | 21.3(0.84) | 51(2.00) | 22×16 | 559(22.00) | 406.4(16.00) | 508(20.00) |
| 3/2×5/4 | 48.3(1.90) | 42.2(1.66) | 64(2.50) | 22×14 | 559(22.00) | 355.4(14.00) | 508(20.00) |
| 3/2×1 | 48.3(1.90) | 33.4(1.32) | 64(2.50) | 24×22 | 610(24.00) | 559.0(22.00) | 508(20.00) |
| 3/2×3/4 | 48.3(1.90) | 26.7(1.05) | 64(2.50) | 24×20 | 610(24.00) | 508.0(20.00) | 508(20.00) |
| 3/2×1/2 | 48.3(1.90) | 21.3(0.84) | 64(2.50) | 24×18 | 610(24.00) | 457.0(18.00) | 508(20.00) |
| 2×3/2 | 60.3(2.38) | 48.3(1.90) | 76(3.00) | 24×16 | 610(24.00) | 406.4(16.00) | 508(20.00) |
| 2×5/4 | 60.3(2.38) | 42.2(1.66) | 76(3.00) | 26×24 | 660(26.00) | 610.0(24.00) | 610(24.00) |
| 2×1 | 60.3(2.38) | 33.4(1.32) | 76(3.00) | 26×22 | 660(26.00) | 559.0(22.00) | 610(24.00) |
| 2×3/4 | 60.3(2.38) | 26.7(1.05) | 76(3.00) | 26×20 | 660(26.00) | 508.0(20.00) | 610(24.00) |
| 5/2×2 | 73.0(2.88) | 60.3(2.38) | 89(3.50) | 26×18 | 660(26.00) | 457.0(18.00) | 610(24.00) |
| 5/2×3/2 | 73.0(2.88) | 48.3(1.90) | 89(3.50) | 28×26 | 711(28.00) | 660.0(26.00) | 610(24.00) |
| 5/2×5/4 | 73.0(2.88) | 42.2(1.66) | 89(3.50) | 28×24 | 711(28.00) | 610.0(24.00) | 610(24.00) |
| 5/2×1 | 73.0(2.88) | 33.4(1.32) | 89(3.50) | 28×20 | 711(28.00) | 508.0(20.00) | 610(24.00) |
| 3×5/2 | 88.9(3.50) | 73.0(2.88) | 89(3.50) | 28×18 | 711(28.00) | 457.0(18.00) | 610(24.00) |
| 3×2 | 88.9(3.50) | 60.3(2.38) | 89(3.50) | 30×28 | 762(30.00) | 711.0(28.00) | 610(24.00) |
| 3×3/2 | 88.9(3.50) | 48.3(1.90) | 89(3.50) | 30×26 | 762(30.00) | 660.0(26.00) | 610(24.00) |
| 3×5/4 | 88.9(3.50) | 42.2(1.66) | 89(3.50) | 30×24 | 762(30.00) | 610.0(24.00) | 610(24.00) |
| 7/2×3 | 101.6(4.00) | 88.9(3.50) | 102(4.00) | 30×20 | 762(30.00) | 508.0(20.00) | 610(24.00) |
| 7/2×5/2 | 101.6(4.00) | 73.0(2.88) | 102(4.00) | 32×30 | 813(32.00) | 762.0(30.00) | 610(24.00) |
| 7/2×2 | 101.6(4.00) | 60.3(2.38) | 102(4.00) | 32×28 | 813(32.00) | 711.0(28.00) | 610(24.00) |
| 7/2×3/2 | 101.6(4.00) | 48.3(1.90) | 102(4.00) | 32×26 | 813(32.00) | 660.0(26.00) | 610(24.00) |
| 7/2×5/4 | 101.6(4.00) | 42.2(1.66) | 102(4.00) | 32×24 | 813(32.00) | 610.0(24.00) | 610(24.00) |
| 4×7/2 | 114.3(4.50) | 101.6(4.00) | 102(4.00) | 34×32 | 864(34.00) | 813.0(32.00) | 610(24.00) |
| 4×3 | 114.3(4.50) | 88.9(3.50) | 102(4.00) | 34×30 | 864(34.00) | 762.0(30.00) | 610(24.00) |
| 4×5/2 | 114.3(4.50) | 73.0(2.88) | 102(4.00) | 34×26 | 864(34.00) | 660.0(26.00) | 610(24.00) |
| 4×2 | 114.3(4.50) | 60.3(2.38) | 102(4.00) | 34×24 | 864(34.00) | 610.0(24.00) | 610(24.00) |
| 4×3/2 | 114.3(4.50) | 48.3(1.90) | 102(4.00) | 36×34 | 914(36.00) | 864(34.00) | 610(24.00) |
| 5×4 | 141.3(5.56) | 114.3(4.50) | 127(5.00) | 36×32 | 914(36.00) | 813(32.00) | 610(24.00) |
| 5×7/2 | 141.3(5.56) | 101.6(4.00) | 127(5.00) | 36×30 | 914(36.00) | 762(30.00) | 610(24.00) |
| 5×3 | 141.3(5.56) | 88.9(3.50) | 127(5.00) | 36×26 | 914(36.00) | 660(26.00) | 610(24.00) |
| 5×5/2 | 141.3(5.56) | 73.0(2.88) | 127(5.00) | 36×24 | 914(36.00) | 610(24.00) | 610(24.00) |
| 5×2 | 141.3(5.56) | 60.3(2.38) | 127(5.00) | 38×36 | 965(38.00) | 914(36.00) | 610(24.00) |
| 6×5 | 168.3(6.62) | 141.3(5.56) | 140(5.50) | 38×34 | 965(38.00) | 864(34.00) | 610(24.00) |
| 6×4 | 168.3(6.62) | 114.3(4.50) | 140(5.50) | 38×32 | 965(38.00) | 813(32.00) | 610(24.00) |
| 6×7/2 | 168.3(6.62) | 101.6(4.00) | 140(5.50) | 38×30 | 965(38.00) | 762(30.00) | 610(24.00) |
| 6×3 | 168.3(6.62) | 88.9(3.50) | 140(5.50) | 38×28 | 965(38.00) | 711(28.00) | 610(24.00) |
| 6×5/2 | 168.3(6.62) | 73.0(2.88) | 140(5.50) | 38×26 | 965(38.00) | 660(26.00) | 610(24.00) |
| 8×6 | 219.1(8.62) | 168.3(6.62) | 152(6.00) | 40×38 | 1016(40.00) | 965(38.00) | 610(24.00) |
| 8×5 | 219.1(8.62) | 141.3(5.56) | 152(6.00) | 40×36 | 1016(40.00) | 914(36.00) | 610(24.00) |
| 8×4 | 219.1(8.62) | 114.3(4.50) | 152(6.00) | 40×34 | 1016(40.00) | 864(34.00) | 610(24.00) |
| 8×7/2 | 219.1(8.62) | 101.6(4.00) | 152(6.00) | 40×32 | 1016(40.00) | 813(32.00) | 610(24.00) |
| 10×8 | 273.0(10.75) | 219.1(8.62) | 178(7.00) | 40×30 | 1016(40.00) | 762(30.00) | 610(24.00) |
| 10×6 | 273.0(10.75) | 168.3(6.62) | 178(7.00) | 42×40 | 1067(42.00) | 1016(40.00) | 610(24.00) |
| 10×5 | 273.0(10.75) | 141.3(5.56) | 178(7.00) | 42×38 | 1067(42.00) | 965(38.00) | 610(24.00) |
| 10×4 | 273.0(10.75) | 114.3(4.50) | 178(7.00) | 42×36 | 1067(42.00) | 914(36.00) | 610(24.00) |
| 12×10 | 323.8(12.75) | 273.0(10.75) | 203(8.00) | 42×34 | 1067(42.00) | 864(34.00) | 610(24.00) |
| 12×8 | 323.8(12.75) | 219.1(8.62) | 203(8.00) | 42×32 | 1067(42.00) | 813(32.00) | 610(24.00) |
| 12×6 | 323.8(12.75) | 168.3(6.62) | 203(8.00) | 42×30 | 1067(42.00) | 762(30.00) | 610(24.00) |
| 12×5 | 323.8(12.75) | 141.3(5.56) | 203(8.00) | 44×42 | 1118(44.00) | 1067(42.00) | 610(24.00) |
| 14×12 | 355.6(14.00) | 323.8(12.75) | 330(13.00) | 44×40 | 1118(44.00) | 1016(40.00) | 610(24.00) |
| 14×10 | 355.6(14.00) | 273.0(10.75) | 330(13.00) | 44×38 | 1118(44.00) | 965(38.00) | 610(24.00) |
| 14×8 | 355.6(14.00) | 219.1(8.62) | 330(13.00) | 44×36 | 1118(44.00) | 914(36.00) | 610(24.00) |
| 14×6 | 355.6(14.00) | 168.3(6.62) | 330(13.00) | 46×44 | 1168(46.00) | 1118(44.00) | 711(28.00) |
| 16×14 | 406.4(16.00) | 355.6(14.00) | 356(14.00) | 46×42 | 1168(46.00) | 1067(42.00) | 711(28.00) |
| 16×12 | 406.4(16.00) | 323.8(12.75) | 356(14.00) | 46×40 | 1168(46.00) | 1016(40.00) | 711(28.00) |
| 16×10 | 406.4(16.00) | 273.0(10.75) | 356(14.00) | 46×38 | 1168(46.00) | 965(38.00) | 711(28.00) |
| 16×8 | 406.4(16.00) | 219.1(8.62) | 356(14.00) | 48×46 | 1219(48.00) | 1168(46.00) | 711(28.00) |
| 18×16 | 457(18.00) | 406.4(16.00) | 381(15.00) | 48×44 | 1219(48.00) | 1118(44.00) | 711(28.00) |
| 18×14 | 457(18.00) | 355.6(14.00) | 381(15.00) | 48×42 | 1219(48.00) | 1067(42.00) | 711(28.00) |
| 18×12 | 457(18.00) | 323.8(12.75) | 381(15.00) | 48×40 | 1219(48.00) | 1016(40.00) | 711(28.00) |
| 18×10 | 457(18.00) | 273.0(10.75) | 381(15.00) | ||||
| Delivery State Choice | Surface Condition |
|---|---|
| Annealed | Pickled |
| Polished | |
| Sand Blasted | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. |
|
Package
Plastic Bag
Wooden Case
Wooden Pallet
At RAHUL FERROMETAL, all our nickel alloy reducers are packed in accordance with international standards to prevent any possible damage or loss. For smaller reducers, we will pack each reducer individually with plastic bag and finally put it in a wooden box for protection. For larger reducers, we will use thick woven plastic bags to individually pack the finished products and place them on wooden pallets for further protection. Please note that wooden cases may incur additional costs, not only their own costs, but also increase freight costs, especially for air transportation. In order to enhance the customer experience, we also provide special packaging according to your special requirements.
Logistics
By Sea
By Air
Sea transportation is the most popular for most orders, hence regarded as the default transportation mode. Accordingly, quotation is thus made as per FOB, CFR, CIF etc.. For urgent demand, we can also offer as per air transportation.
FAQ
Yes, if you have the corresponding needs, we will perform internal and external polishing.A
Concentric Reducer, Eccentric Reducer.A
Monel 400, Monel K-500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy B-2, Hastelloy C-276, etc.A
South America, North America, Asia, Middle East, Europe, Africa etc.A
For smaller reducers, we will pack each reducer individually with plastic bag, and finally put it in wooden case for protection. For larger reducers, we will use thick woven plastic bags to individually pack the finished products and place them on wooden pallets for further protection.A
